Mechanical Tools Ace Bearings.jpg

These mechanical tools are designed for the mounting and dismounting of bearings. The mounting forces are transmitted by the geometrical locking effect.

MECHANICAL TOOLS

Hydraulic Nuts Ace Bearings.jpg

HYDRAULIC NUTS

Hydraulic tools can be used to apply large forces. These tools are therefore particularly suitable for the mounting and dismounting of large bearings or parts with a tapered bore. Hydraulic nuts are used as a mounting tool. Manual pumps can be used to generate pressure.

HYDNUT hydraulic nuts can be used to press parts with a tapered bore onto their tapered seat. Presses are mainly used if the drive-up forces required cannot be applied using other accessories, e.g. shaft nuts or pressure screws.

The main applications are as follows:
  • Mounting and dismounting of rolling bearings with tapered bore. The bearings can be seated directly on a tapered shaft, an adapter sleeve or a withdrawal sleeve. The hydraulic nut can also be used for the dismounting of adapter or withdrawal sleeves.

  • Mounting and dismounting of components such as couplings, gears and ships' propellers.

Mobile Hydraulic Unit Ace Bearings.jpg

Mobile hydraulic unit for axlebox bearing mounting on rail vehicles

Your benefit:

  • Improved ergonomics

  • Precise positioning

  • Available in two versions:

    • Standard version

    • Version with force-travel measurement and data storage for installation documentation

  • The standard version allows a cost saving of 30% to be achieved

MOBILE HYDRAULIC UNIT

Pressure Generating Devices Ace Bearings

PUMP hydraulic pumps

Your benefit:

  • Ease of use and low force expenditure

  • Reduced risk of bearing damage

  • Exactly the right pump for every application

PRESSURE GENERATION DEVICES

Induction Heating Devices Ace Bearings.j

HEATER

Your benefit:

  • Easy operation via touchscreen

  • Time savings of up to 50%

  • Energy consumption cut by up to 50%

  • Safe heating

INDUCTION HEATING DEVICES

Indution Units Ace Bears.jpg

HEAT GENERATOR

Your benefit:

  • Cost savings thanks to high efficiency

  • Increased productivity thanks to shorter heating times

  • Covers a wide range of mounting and dismounting applications

  • Process reliability thanks to safe heating

INDUCTION UNITS WITH MEDIUM FREQUENCY TECHNOLOGY

Unlike induction heating devices, induction units with medium-frequency technology are not only suitable for thermal mounting but also for removal. They can also be used to heat up very large and heavy components.

Adequate expansion of the bearings is achieved in most cases at +80 °C to +100 °C. During the heating process, the maximum heating temperature must be observed. To prevent changes to the structure and hardness of the bearing, the temperature of rolling bearings must not normally exceed +120 °C. In all devices for heating, the temperature can be controlled with continuous variability.

These units can likewise be used in mobile applications thanks to their high level of flexibility and compact design. It can therefore be used, for example, at construction sites for wind turbines or for other large components that are difficult to transport.

Each unit comprises a generator and inductor that is positioned on the workpiece. A rigid or flexible inductor is used, depending on requirements. Flexible inductors can be fitted in the bore or on the outside diameter of the workpiece, depending on the application in question. Flexible inductors are suitable for heating bearing inner rings and large components such as machine supports in wind turbines. The length of the inductor is determined in relation to the dimensions of the workpiece.

Rigid inductors are particularly well suited to volume production. Flexibility is less of a priority here than short setup times and a high level of process reliability.

Heating devices with medium-frequency technology have the following advantages:

  • Suitable for mounting

  • Suitable for dismounting

  • Operating frequency from 10 kHz to 25 kHz

  • Efficiency of the generator greater than 90%

  • Low energy requirements

  • Short heating times

  • Time and temperature-based control as well as additional operating modes

  • Automatic demagnetization

  • Flexible and rigid inductors can be used

  • Inductors can be used on either the inside or outside of the component

  • Lower mains connection power than heating devices with mains frequency

  • Almost silent

  • Air-cooled system

Comprehensive reasons to use HEAT GENERATOR devices

Higher efficiency

HEAT GENERATOR devices allow energy costs to be significantly reduced. With an efficiency level of >90%, the HEAT GENERATOR operates with a significantly higher level of energy efficiency than conventional heating devices.



More productivity

The HEAT GENERATOR devices heat components faster than mains frequency devices, which increases productivity.



More flexibility

The HEAT GENERATOR is significantly more compact and almost 40% lighter than the previous generation. This makes the units mobile and suitable even for use in hard-to-reach areas. Depending on the application, mounting and dismounting work can be carried out using flexible or rigid inductors.



Enhanced reliability

The temperature control allows easy and reliable handling and prevents the workpiece overheating.

Features

  • For large and heavy workpieces

  • Digital control system

  • Controlled via touch panel

  • Comprises a generator and an inductor that can be either rigid or flexible.

    • Rigid inductors are:

      • Manufactured specifically for the application

      • Light and can be easily placed on the workpiece

      • Particularly suitable for the dismounting of bearing rings, labyrinth rings, and axlebox bearings in volume production

    • Flexible inductors are:

      • Similar to a cable, which can be attached to the bore or placed on the outside of the workpiece

      • Up to 40 meters long, depending on the application

      • Uniquely adaptable to different workpieces and suitable for particularly large bearings, gears, housings, etc.

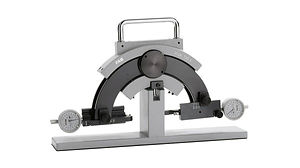

Measurement and Inspection Ace Bearings.

Feeler gauges and measurement gauges can be used to inspect the production of bearing seats and the mounting of bearings.

MEASUREMENT AND INSPECTION

ACCESSORIES ACE BEARINGS.jpg

Accessories are used to assist in the storage, transport and mounting of rolling bearings.

Transport and mounting tools:

The BEARING MATE transport and mounting tool is an accessory for the easy handling of medium-sized and large rolling bearings. It can also be used in the heating of bearings prior to mounting.

ACCESSORIES
